Electrobombas de superficie12 Voltios SERIE TMC-00006.

SKU 77202880 Modelo TMC 00006 Categoría Bombas de agua de Superficie
73,86 €
Impuestos incluidos

Bombas De Agua De 12V

Bombas de corriente continua autoaspirantes diseñadas para trasegar caudales discretos aguas limpias libres de sólidos.

La disponibilidad de este artículo es de 48 Horas. El envío será 24/72H

Corriente
Seleccione tipo

bombas de agua de 12V

Amplia gama-los mejores precios de bombas de agua de 12V Bombas de corriente continua autoaspirantes Diseñadas para trasegar caudales discretos aguas limpias libres de sólidos. preparadas para arranque automático. a través de presostato.

TMC-06201
Water pump
MOTOR :12V / 24V
CAPACITY :400GPH (1512LPH)
AMP DRAW :8A (12V) / 4A (24V)
FUSE SIZE :15A (12V) / 8A (24V)
HOSE DIA. :1 (25mm)
DELIVERY HEAD :13FT. (4M)
DIMENSION :168.6x120x97.1 mm

TMC-06202
Water Pumps
Description Water pump with pressure switch
MOTOR :12V / 24V
CAPACITY :400GPH (1512LPH)
AMP DRAW :8A (12V) / 4A (24V)
FUSE SIZE :15A (12V) / 8A (24V)
HOSE DIA. :1 (25mm)
DELIVERY HEAD :13FT. (4M)
DIMENSION :168.6x201x97.1 mm

TMC-06203
Water Pumps
Description Water pump
MOTOR :12V / 24V
CAPACITY :400GPH (1512LPH)
AMP DRAW :8A (12V) / 4A (24V)
FUSE SIZE :15A (12V) / 8A (24V)
HOSE DIA. :1(25mm)
DELIVERY HEAD :13FT. (4M)
DIMENSION :172x128x97.1 mm

TMC-06204
Water Pumps
Description Water pump
MOTOR :12V / 24V
CAPACITY :400GPH (1512LPH)
AMP DRAW :8A (12V) / 4A (24V)
FUSE SIZE :15A (12V) / 8A (24V)
HOSE DIA. :1(25mm)
DELIVERY HEAD :13FT. (4M)
DIMENSION :172x128x97.1 mm

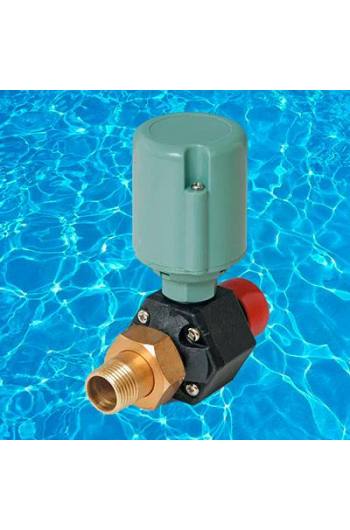

TMC-00006
Water Pump Pressure Switch
Description Pressure switch for 06201, 06202
PACKING :30pcs/ctn/1.62cuft
WEIGHT :8.2kgs/ctn

TMC-0621I
Water Pump Impeller
Description Replacement impeller for water pump
TMC-06201, 06202, 06203, 06204, 06205
MATERIAL :NBR ( NITRIL RUBBER )
HARDNESS :60° ± 5°0°
THICKNESS :22.1 ± 0.1mm
IMPELLER DIA :50.7mm

TMC-6010101
Electric Gear Pump
Description
Self-priming, bronze gear
Pumping elements inside
MOTOR :12V / 24V
AMP DRAW :15A (12V) / 8A (24V) FOR
GENERAL LIQUID
FUSE SIZE :35A (12V) / 15A (24V)
HOSE DIA :5/8 (16mm)
DIMENSION :161.6x183.5x171.5 mm

Specification
THREAD OPTION 1
Internal thread:1/2BSPT(w/14TPI)
External thread:3/4BSPF(w/12TPI)
ORDER NO.
503-6204011 12V
503-6204012 24V
THREAD OPTION 2
Internal thread:1/2BSPT(w/14TPI)
External thread:3/4BSPF(w/14TPI)
ORDER NO.
503-6204071 12V
503-6204072 24V

BSPT:British Standard Pipe Taper Thread
BSPF/BSPP: British Standard Pipe Parallel Thread
TPI:Thread per inch


* Todos nuestros productos gozan de 2 años de garantía.
